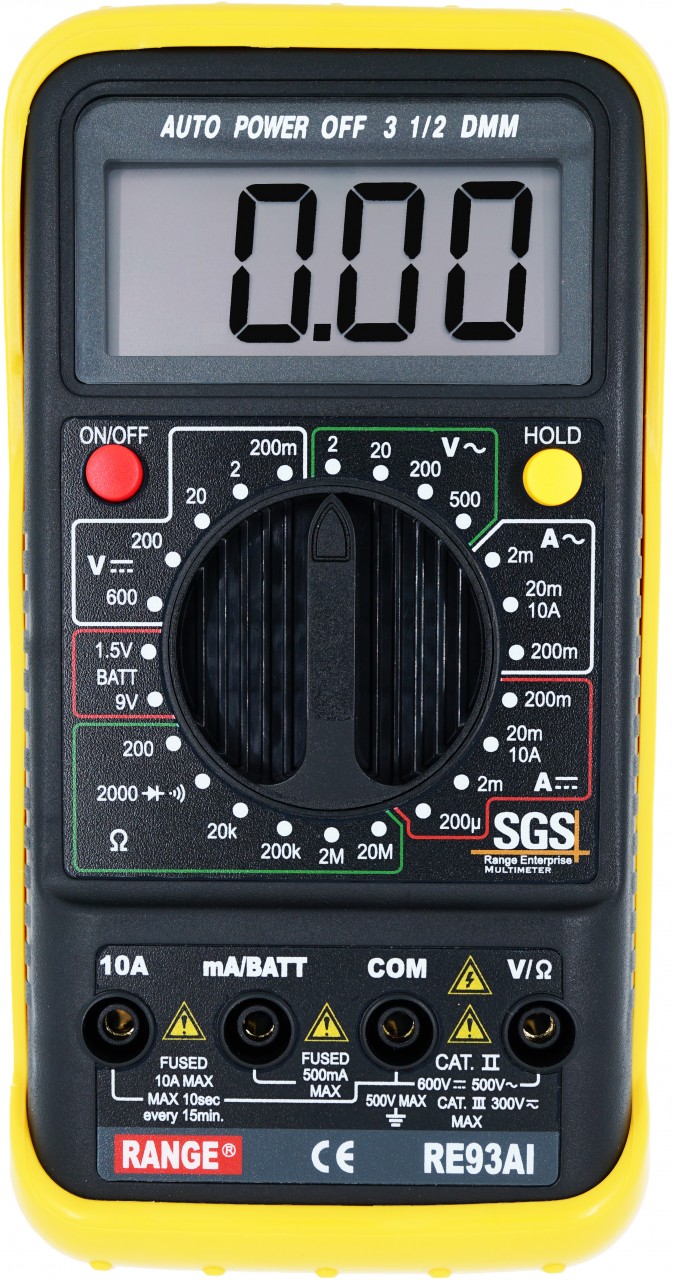

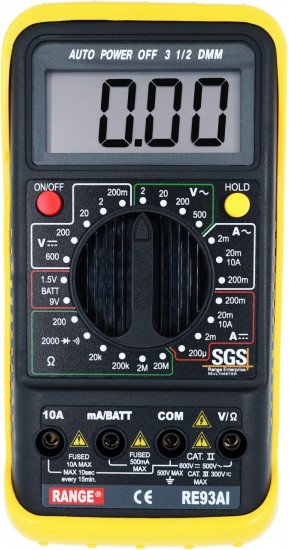

RE93A1

Image 1
  • Image 1
Availability:
For general enquiries please contact us
Bookmark and Share

Description

ce.jpgemc-lvd.jpgrohs.bmpsgs-logo.pngiec61010.jpg cat-ii-600.jpg cat-iii-300.jpg auto-power-off.jpg

Features

  • Tested & Certified by sgs-logo.png
  • The latest revision of IEC/EN 61010
  • 2000 counts LDC display
  • Manual Range
  • DC/AC Voltage
  • DC/AC Current
  • Resistance
  • Diode Test
  • Audible Continuity Test
  • Battery Test
  • Data Hold
  • Auto Power Off
  • Low Battery Indication
  • Overload Protection
  • Product Size: 165 x 85 x 37 mm
  • Product Net Weight: 215g

Specification

Specifications Range Best Accuracy
DC Voltage 200mV/2V/20V/200V ±(0.5%+2)
500V ±(0.8%+2)
AC Voltage 2V/20V/200V ±(0.8%+3)
600V ±(1.2%+3)
Resistance 200Ω ±(1.0%+3)
2KΩ/20KΩ/200KΩ/2MΩ ±(1.0%+2)
20MΩ ±(1.5%+3)
DC Current 200µA/2mA/20mA ±(1.2% +2)
200mA ±(1.5% +2)
10A ±(2.0% +3)
AC Current 2mA/20mA ±(1.5% +3)
200mA ±(2.0% +3)
10A ±(2.5% +5)

Supplied Accessories
