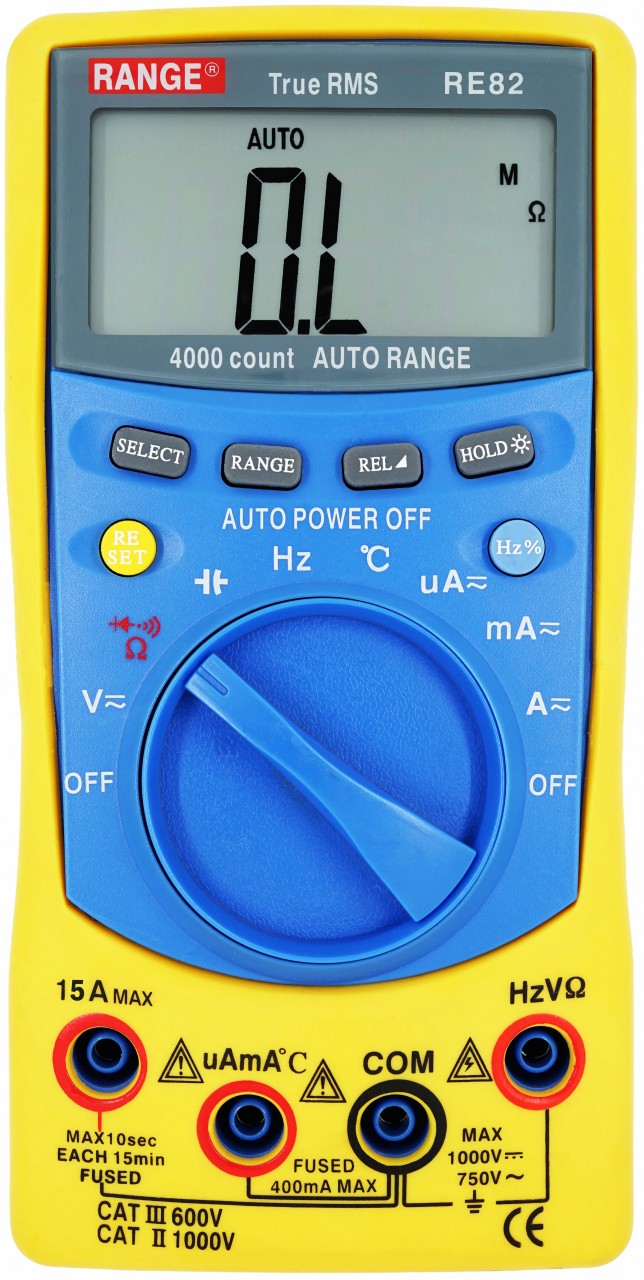

RE82
Availability:
For general enquiries please contact us
Description
Features
- 4000 counts LCD Display
- Auto and Manual Range
- DC/AC Voltage
- DC/AC Current
- Resistance
- Diode Test
- Audible Continuity Test
- Capacitance
- Frequency
- Temperature
- Data Hold
- Relative Measurement
- Back Light
- True RMS
- Auto Power Off
- Low Battery Indication
- Overload Protection
- 15A
- Product Size: 175x 90x 37mm
- Product Net Weight: 30g
Specification
| Specifications | Range | Best Accuracy |
| DC Voltage | 400mV | ±(0.8%+3) |
| 4V/40V/400V | ±(0.8%+1) | |
| 1000V | ±(1.0%+3) | |
| AC Voltage | 4V/40V/400V | ±(1.0%+5) |
| 750V | ±(1.2%+5) | |
| Resistance | 400Ω | ±(1.2%+3) |
| 4KΩ/40KΩ/400KΩ | ±(1.0%+2) | |
| 4MΩ | ±(1.2%+2) | |
| 40MΩ | ±(1.5%+3) | |
| DC Current | 400µA/4mA | ±(1.2%+2) |
| 40mA/400mA | ±(1.2%+3) | |
| 4A/15A | ±(1.5%+5) | |
| AC Current | 400µA/4mA | ±(2.0%+3) |
| 40mA/400mA | ±(2.0%+5) | |
| 4A/15A | ±(2.5%+5) | |
| Capacitance | 4nF/40nF | ±(3.0%+10) |
| 400nF/4µF/40µF | ±(3.0%+5) | |
| 400µF | ±(4.0%+5) | |
| Frequency |
10Hz/100Hz/1000Hz/10KHz/ 100KHz/1000KHz/10MHz |
±(0.1%+3) |
| Temperature | - 20℃ ~ 0℃ | ±(3.0%+3) |
| 0℃ ~ 300℃ | ±(1.0%+3) | |
| 300℃ ~ 1000℃ | ±(2.0%+5) |
