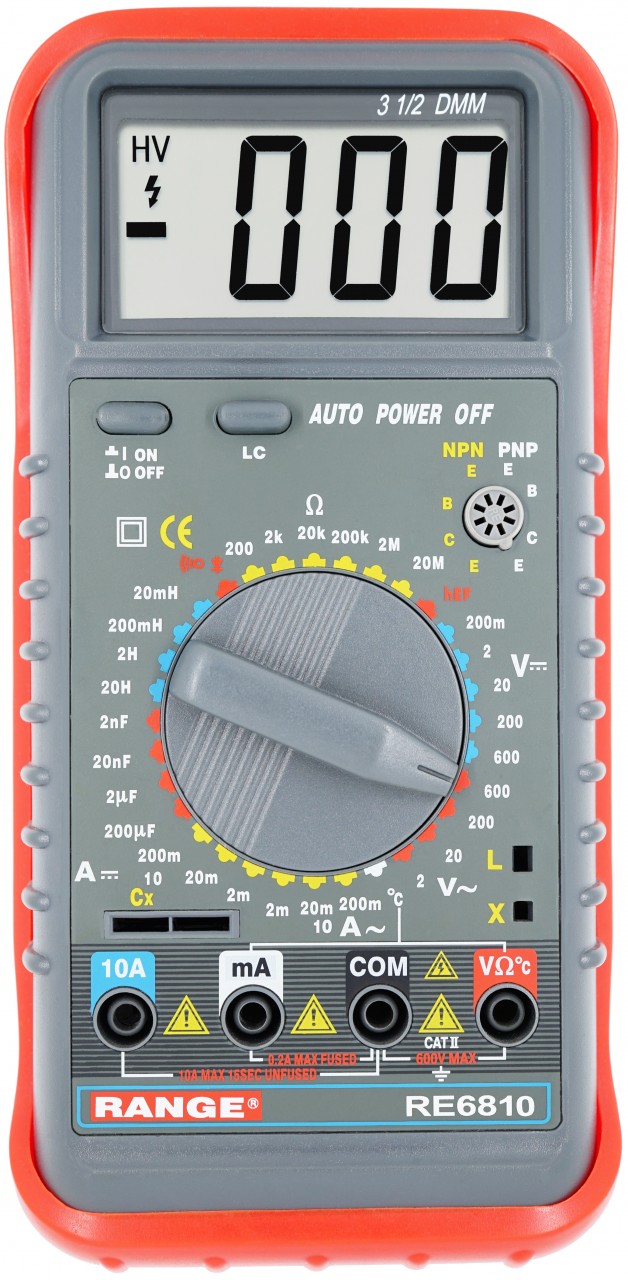

RE6810

Image 1
  • Image 1
Availability:
For general enquiries please contact us
Bookmark and Share

Description

ce.jpgemc-lvd.jpgrohs.bmpiec61010.jpg cat-ii-1000.jpg cat-iii-600.png auto-power-off.jpg temperature.png

Features

  • 2000 counts LCD Display
  • Auto Range & Manual Range
  • DC/AC Voltage
  • DC/AC Current
  • Resistance
  • Diode Test
  • Audible Continuity Test
  • Transistor hFE Test
  • Capacitance
  • Temperature
  • Inductance
  • Auto Power Off
  • Low Battery Indication
  • Overload Protection
  • Product Size: 194 x 91 x 44 mm
  • Product Net Weight: 320g

Specification

Specifications Range Best Accuracy
DC Voltage 200mV/2V/20V/200V ±(0.5%+2)
1000V ±(0.8%+2)
AC Voltage 2V/20V/200V ±(0.8%+3)
700V ±(1.2%+3)
Resistance 200Ω ±(1.0%+3)
2KΩ/20KΩ/200KΩ/2MΩ ±(0.8%+2)
20MΩ ±(2.0%+3)
DC Current 2mA/20mA ±(1.0%+3)
200mA ±(1.5%+3)
10A ±(2.0%+5)
AC Current 2mA/20mA ±(1.5%+3)
200mA ±(2.0%+3)
10A ±(2.5%+5)
Capacitance 2nF ±(2.5%+10)
20nF/2µF ±(2.5%+3)
200µF ±(5.0%+5)
Inductance 20mH/200mH/2H/20H ±(2.5%+3)
Temperature - 20℃ ~ 800℃ ≦150℃ ± (3℃+1)
＞150℃ ± (3.0%+1)

Supplied Accessories
