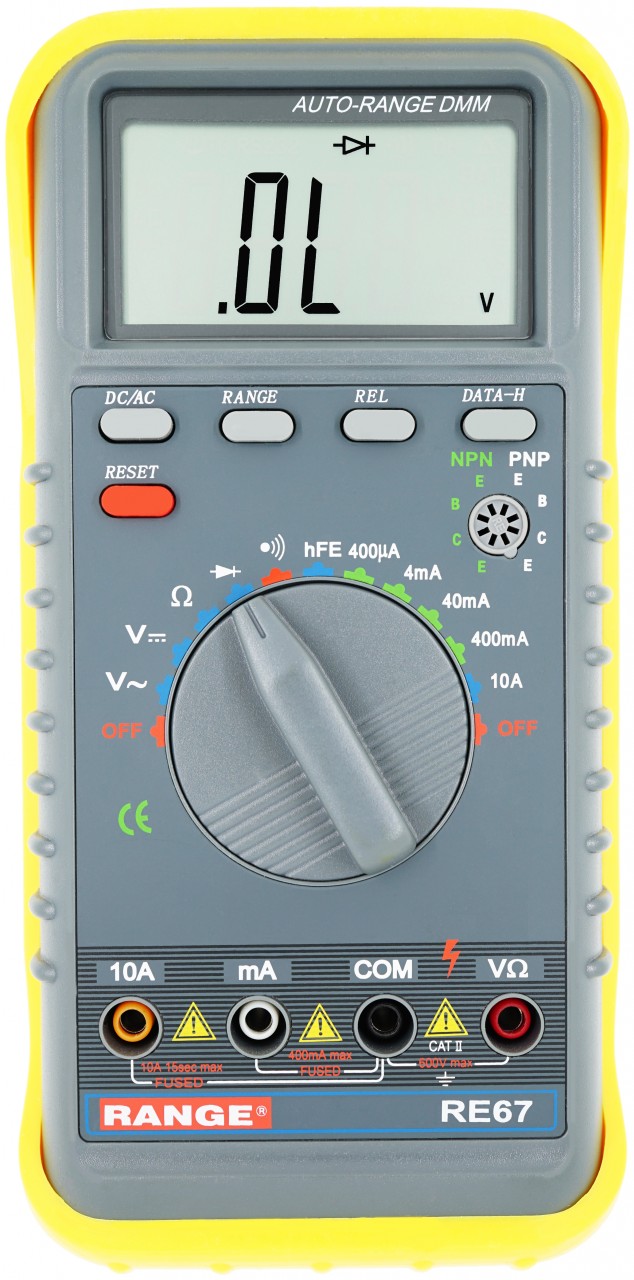

RE67

Image 1
  • Image 1
Availability:
For general enquiries please contact us
Bookmark and Share

Description

ce.jpgemc-lvd.jpgrohs.bmpiec61010.jpg cat-ii-600.jpg auto-power-off.jpg

Features

  • 4000 counts LCD Display
  • Auto Range & Manual Range
  • DC / AC Voltage
  • DC / AC Current
  • Resistance
  • Diode Test
  • Audible Continuity Test
  • Transistor hFE Test
  • Data Hold
  • Auto Power Off
  • Low Battery Indication
  • Overload Protection
  • Product Size: 189 x 91 x 32 mm
  • Product Net Weight: 310g

Specification

Specifications Range Best Accuracy
DC Voltage 400mV/4V/40V/400V ±(0.5%+2)
600V ±(0.8%+2)
AC Voltage 4mV/400mV/4V/40V/400V ±(0.8%+3)
600V ±(1.2%+2)
Resistance 400Ω ±(1.0%+1Ω)
4kΩ/40kΩ/400kΩ/4MΩ ±(1.0%+2)
40MΩ ±(1.5%+3)
DC Current 400µA/4000µA/40mA/400mA ±(1.2%+2)
4A/10A ±(2.0%+3)
AC Current 400µA/4000µA/40mA/400mA ±(1.5%+3)
4A/10A ±(2.5%+5)

Supplied Accessories
