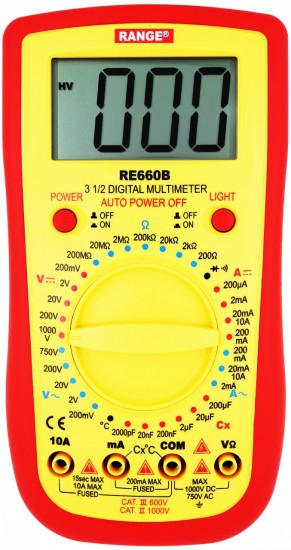

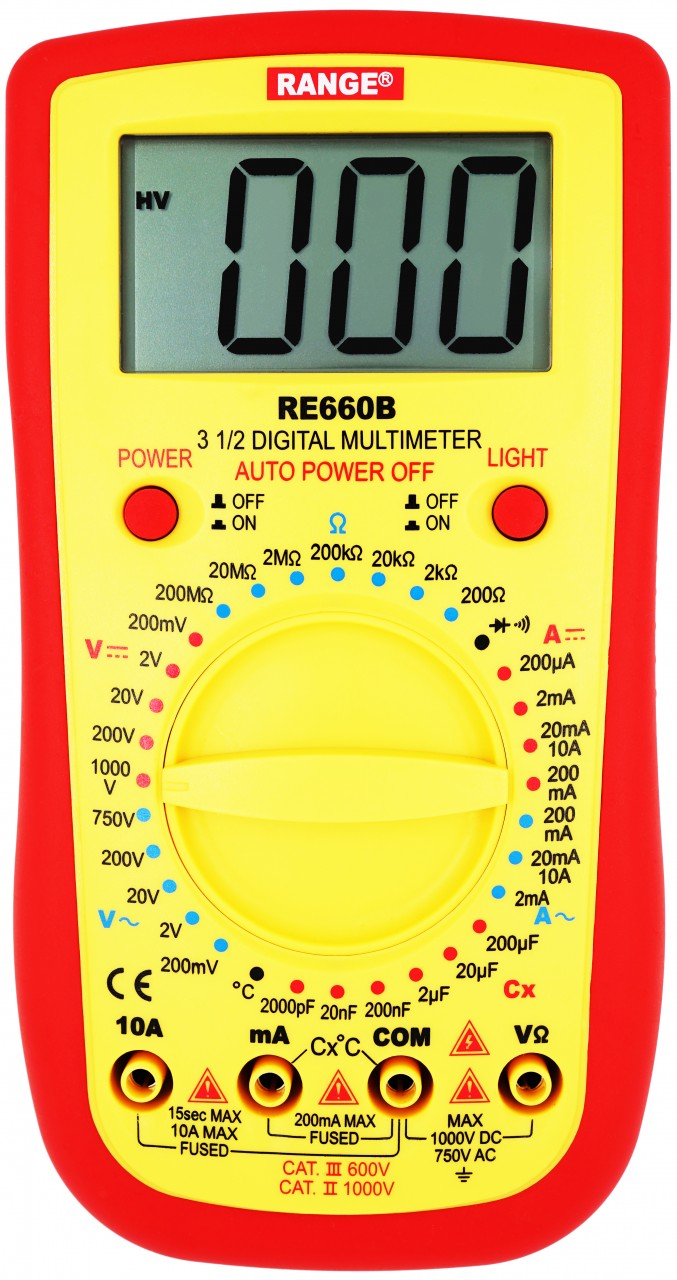

RE660B
Availability:
For general enquiries please contact us
Description
Features
- 2000 counts LCD Display
- Manual Range
- DC/AC Voltage
- DC/AC Current
- Resistance
- Diode Test
- Audible Continuity Test
- Capacitance
- Temperature
- Back Light
- Auto Power Off
- Low Battery indication
- Overload Protection
- Product Size: 190 x 100 x 40
- Product Net Weight: 300g
Specification
| Specifications | Range | Best Accuracy |
| DC Voltage | 200mV/2V/20V/200V | ±(0.5%+2) |
| 1000V | ±(0.8%+2) | |
| AC Voltage | 200mV/2V/20V/200V | ±(0.8%+3) |
| 750V | ±(1.2%+3) | |
| Resistance | 200Ω | ±(1.0%+3) |
| 2KΩ/20KΩ/200KΩ/2MΩ | ±(1.0%+2) | |
| 20MΩ | ±(1.5%+3) | |
| 200MΩ | ±(5.0%+5) | |
| DC Current | 200μA/2mA/20mA | ±(1.2%+2) |
| 200mA | ±(1.5%+2) | |
| 10A | ±(2.0%+3) | |
| AC Current | 2mA/20mA | ±(1.5%+3) |
| 200mA | ±(2.0%+3) | |
| 10A | ±(2.5%+5) | |
| Capacitance | 2000pF | ±(2.5%+10) |
| 20nF/200nF/2µF/20µF | ±(2.5%+5) | |
| 200µF | ±(5.0%+10) | |
| Temperature | -50~150℃ | ±(3℃+1) |
| 150~800℃ | ±(3%+1) |
