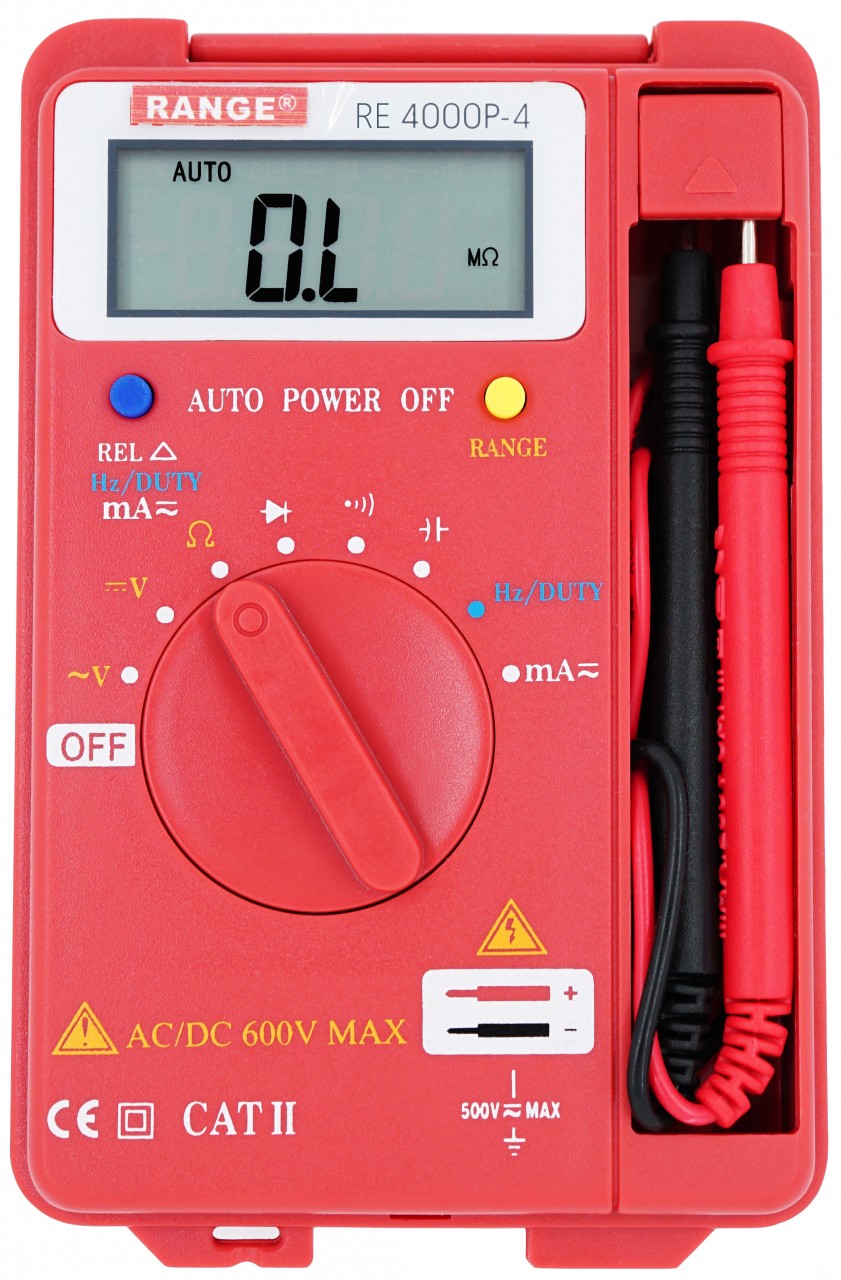

RE4000P-4

Image 1
  • Image 1
  • Image 2
  • Image 3
Availability:
For general enquiries please contact us
Bookmark and Share

Description

ce.jpgemc-lvd.jpgrohs.bmpiec61010.jpg cat-ii-600.jpg

Features

  • 4000 counts LCD Display
  • Auto Range and Manual Range
  • Tests AC / DC Voltage and Current
  • Resistance
  • Diode
  • Audible continuity Test
  • Frequency
  • Capacitance
  • Relative Measurement
  • Low Battery indicated
  • Auto Power Off
  • Overload Protection

    • Specification

    Specifications Range Best Accuracy
    DC Voltage 400mV/4V/40V/400V ± 0.5%
    600V ± 0.8%
    AC Voltage 4V/40V/400V ± 1.0%

    600V

    		 ± 1.2%

    DC Current

     40mA/400mA

    		 ± 1.2%

    AC Current

     40mA/400mA

    		 ± 1.5%
    Resistance 400Ω/4KΩ/40KΩ/400KΩ/4MΩ ± 1.0%
    40MΩ ± 1.5%
    Capacitance 4nF/40nF ± 3.0%
    400nF/4µF/40µF ± 2.5%
    400µF ± 5.0%
    Frequency 10Hz/100Hz/1KHz/10KHz/ ± 0.1%
    100KHz/1MHz/10MHz

    Supplied Accessories

    　
    • Starter Guide and Operation Guide
