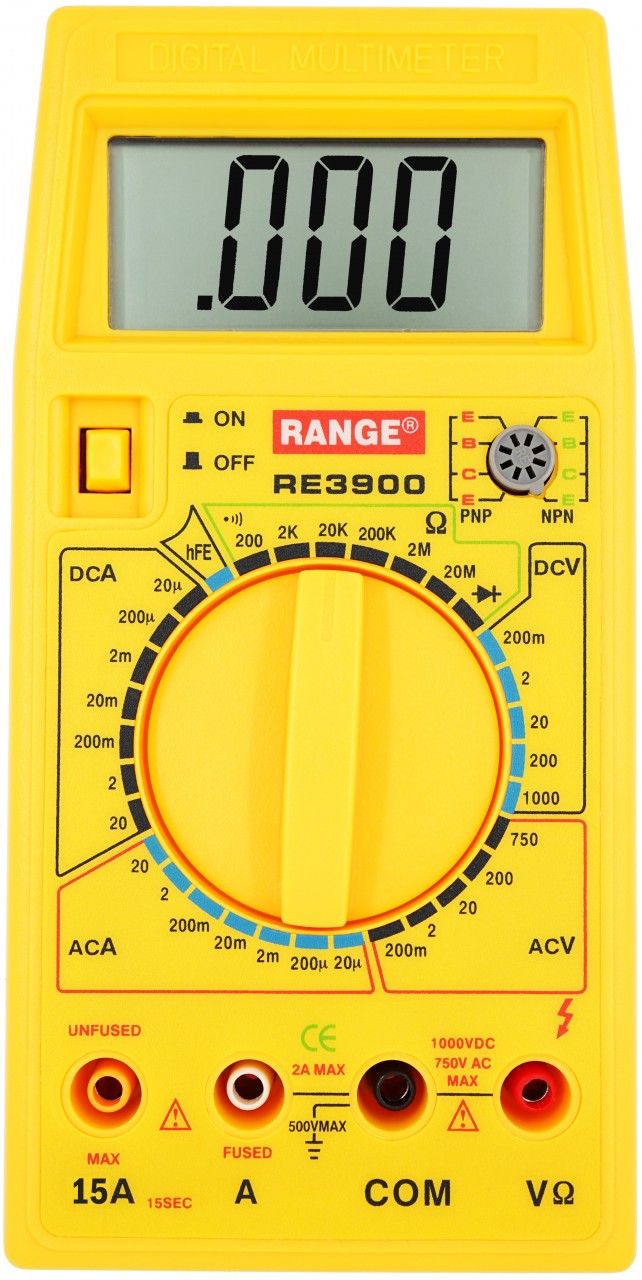

RE3900
Availability:
For general enquiries please contact us
Description
Features
- 2000 counts LCD Display
- Manual Range
- DC/AC Voltage
- DC/AC Current
- Resistance
- Diode Test
- Audible Continuity Test
- Transistor hFE Test
- Auto Power Off
- Low Battery Indication
- Overload Protection
- 15A
- Product Size: 172 x 88 x 36 mm
- Product Net Weight: 340g
Specification
| Specifications | Range | Best Accuracy |
| DC Voltage | 200mV/2V/20V/200V/1000V | ± (0.5% + 1) |
| AC Voltage | 200mV | ± (1.2% + 3) |
| 2V/20V/200V | ± (0.8% + 3) | |
| 700V | ± (1.2% + 3) | |
| Resistance | 200Ω | ± (0.5% + 3) |
| 2kΩ/20kΩ/200kΩ/2MΩ | ± (0.5% + 1) | |
| 20MΩ | ± (1.0% + 2) | |
| DC Current | 20µA | ± (2.0% + 5) |
| 200µA/2mA/20mA | ± (0.5% + 1) | |
| 200mA/2A | ± (1.2% + 1) | |
| 15A | ± (2.0% + 5) | |
| AC Current | 20µA | ± (3.0% + 7) |
| 200µA/2mA/20mA | ± (1.0% + 3) | |
| 200mA/2A | ± (1.8% + 3) | |
| 15A | ± (3.0% + 7) |
