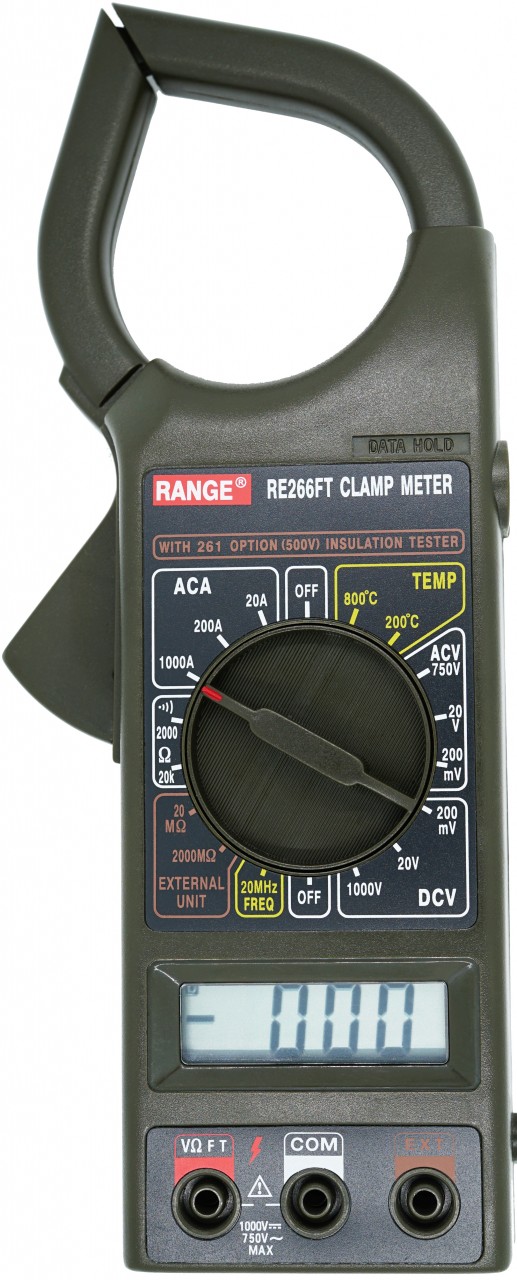

RE266FT

Image 1
  • Image 1
Availability:
For general enquiries please contact us
Bookmark and Share

Description


Features

  • 2000 counts LCD Display
  • Manual Range
  • DC / AC Voltage
  • AC Current
  • Resistance
  • Audible Continuity Test
  • Frequency
  • Temperature
  • Data Hold
  • Insulation Test (with 261 option)
  • Low Battery Indication
  • Overload Protection

Specification

Specifications Range Best Accuracy
DC Voltage 200mV/2V/20V/200V ±(0.5%+1)
1000V ±(0.8%+2)
AC Voltage 200mV/200V/750V ±(1.0%+2)
Resistance 2KΩ/20KΩ ±(1.0%+1)
AC Current 20A/200A ±(1.5%+2)
1000A ≦800A ±(2.0%+5)
＞800A ±(3.0%+5)
Frequency 20MHz ±(1.5%+5)
Temperature 0℃ ~ 400℃ ±(2.0%+3)
400℃ ~ 750℃ ±(3.0%+5)
Insulation 20MΩ ±(2.0%+2)
2000MΩ ≦500A ±(4.0%+2)
＞500A ±(5.0%+2)

Supplied Accessories

.
