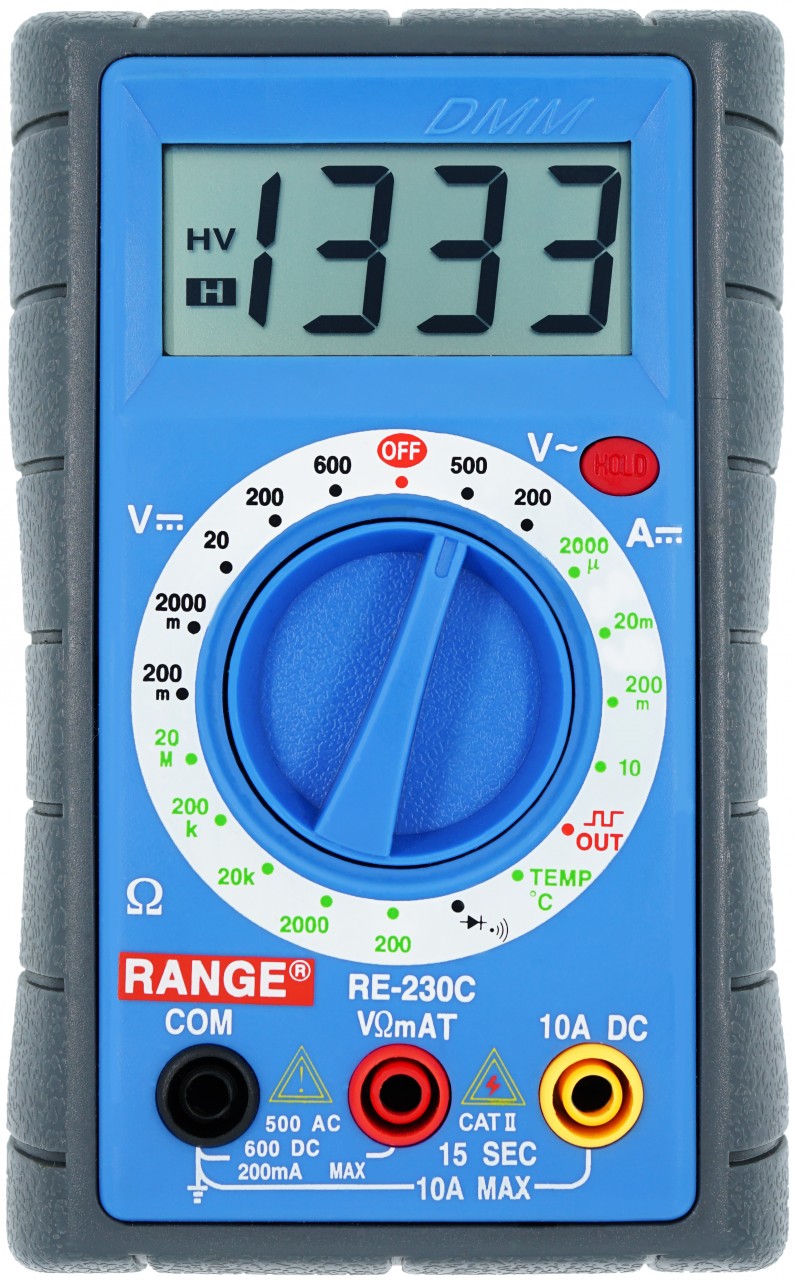

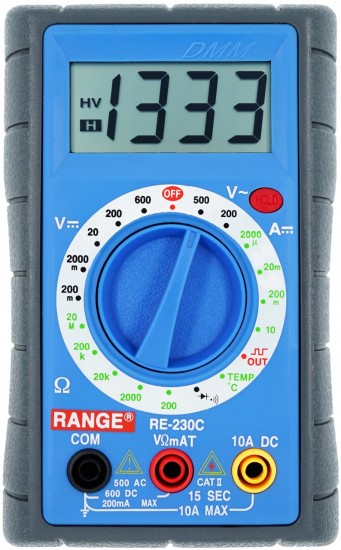

RE230C

Image 1
  • Image 1
Availability:
For general enquiries please contact us
Bookmark and Share

Description

ce.jpgemc-lvd.jpgrohs.bmpiec61010.jpg cat-ii-600.jpg

Features

  • 2000 counts LCD Display
  • Manual Range
  • DC/AC Voltage
  • DC Current
  • Resistance
  • Diode Test
  • Audible Continuity Test
  • Temperature
  • Square Wave Output
  • Data Hold
  • Low Battery Indication
  • Overload Protection
  • Product Size: 135 x 85 x 32 mm
  • Product Net Weight: 155g

    • Specification

    Specifications Range Best Accuracy
    DC Voltage 200mV/2000mV/20V/200V ±(0.5%+2)
    600V ±(0.8%+2)
    AC Voltage 200V/500V ±(1.2%+10)
    Resistance 200Ω/2000Ω/20KΩ/200KΩ ±(0.8%+2)
    20MΩ ±(1.2%+2)
    DC Current 2000μA/20mA ±(1.5%+2)
    200mA ±(2.0%+3)
    Temperature -20℃ ~ 150℃ ±(3.0% + 2)
    151℃ ~ 1000℃ ±3.0%

    Supplied Accessories
