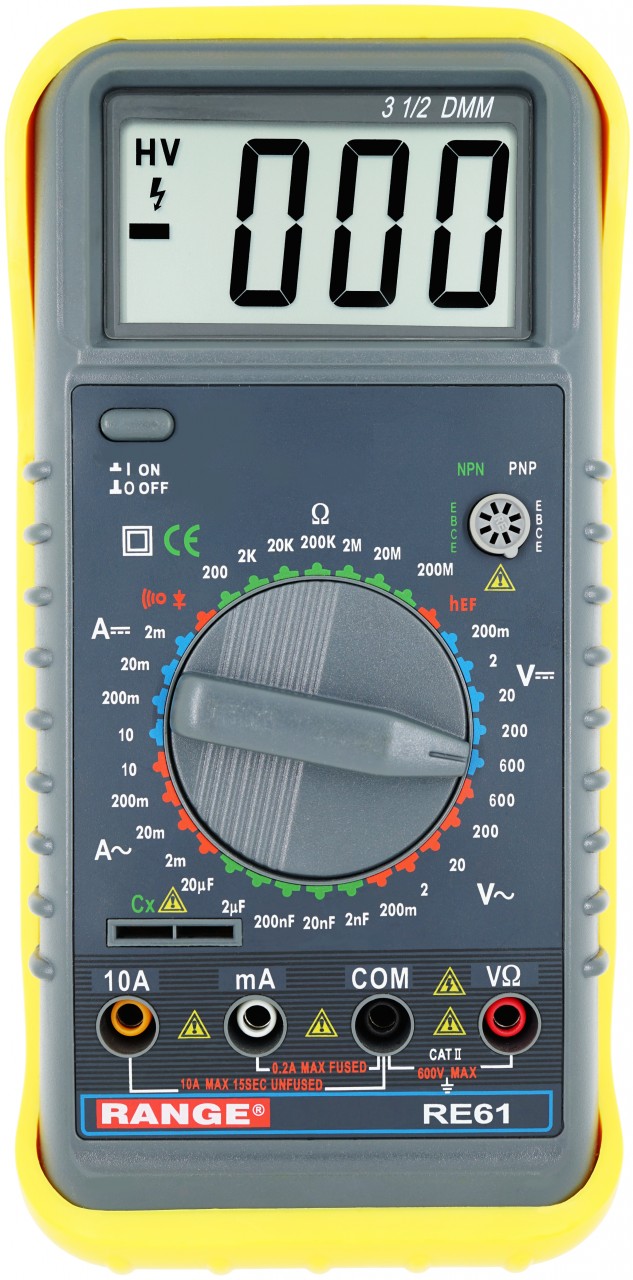

RE61

  • Image 1
Availability:
For general enquiries please contact us
Bookmark and Share


Description

ce.jpgemc-lvd.jpgrohs.bmpiec61010.jpg cat-ii-600.jpg auto-power-off.jpg

Features

  • 2000 counts LCD Display
  • Manual Range
  • DC / AC Voltage
  • DC / AC Current
  • Resistance
  • Diode Test
  • Audible Continuity Test
  • Transistor hFE Test
  • Capacitance
  • Auto Power Off
  • Low Battery Indication
  • Overload Protection
  • Product Size: 189 x 91 x 32 mm
  • Product Net Weight: 310g

Specification

Specifications Range Best Accuracy
DC Voltage 200mV/2V/20V/200V ±(0.5%+1)
600V ±(0.8%+2)
AC Voltage 200mV ±(1.2%+3)
2V/20V/200V ±(0.8%+3)
600V ±(1.2%+3)
Resistance 200Ω ±(0.8%+3)
2KΩ/20KΩ/200KΩ/2MΩ ±(0.8%+1)
20MΩ ±(1.0%+2)
200MΩ ±[5.0%(rdg-10)+10]
DC Current 2mA/20mA ±(0.8%+1)
200mA/2A ±(1.5%+1)
10A ±(2.0%+5)
AC Current 2mA/20mA ±(1.0%+3)
200mA/2A ±(1.8%+3)
10A ±(3.0%+7)
Capacitance 2000pF/20nF/200nF/2µF/20µF ±(4.0%+3)

Supplied Accessories
