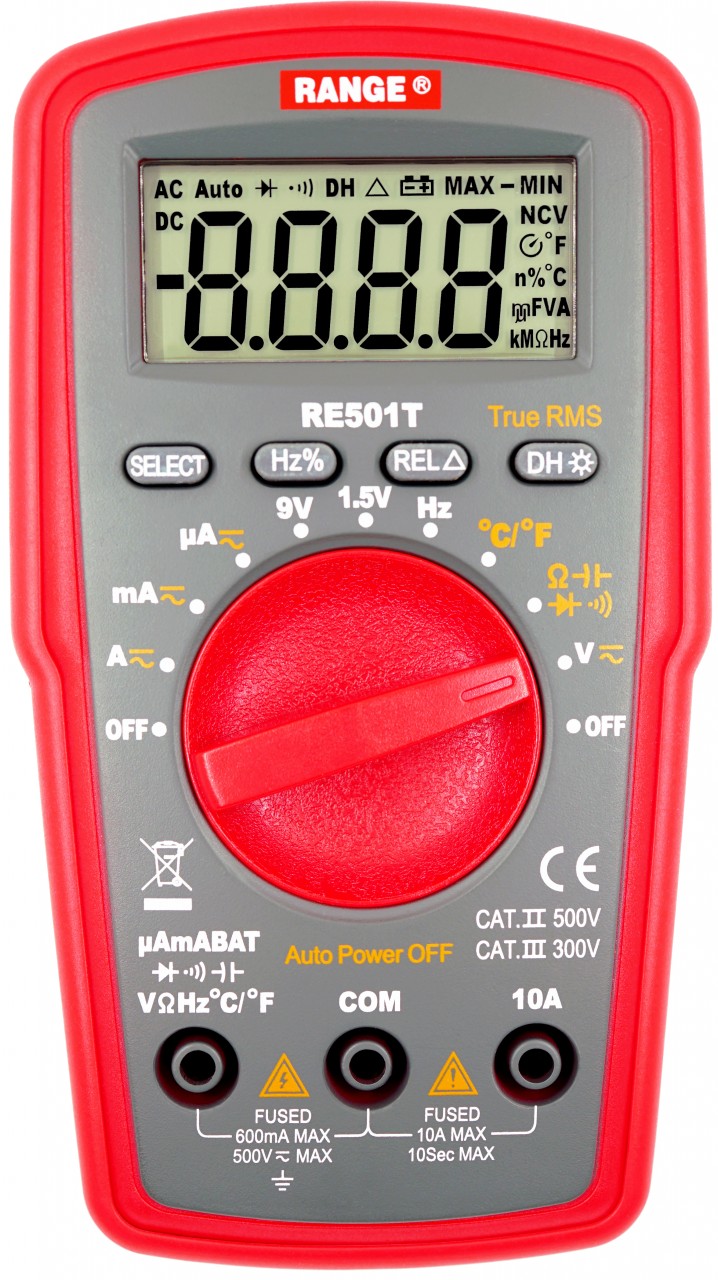

RE501T (Red)

  • Image 1
Availability:
For general enquiries please contact us
Bookmark and Share


Description

ce.jpgemc-lvd.jpgrohs.bmp iec61010.jpg cat-ii-1000.jpg cat-iii-600.png cat-iv-300.jpg trms.pngbacklighticon.jpgauto-power-off.jpg temperature.png

Features

  • 6000 counts LCD Display
  • Auto Range & Manual Range
  • DC / AC Voltage
  • DC / AC Current
  • Resistance
  • Diode Test
  • Audible Continuity Test
  • Capacitance
  • Frequency
  • Temperature
  • Duty Cycle
  • Relative Measurement
  • Back Light
  • True RMS
  • Auto Power Off
  • Low Battery Indication
  • Overload Protection

Specification

Specifications Range Best Accuracy
DC Voltage 60.00mV ±(0.8%+2)
600.0mV/6.000V/60.00V/600.0V ±(0.5%+2)
600V ±(0.8%+2)
AC Voltage 60.00mV/600.0mV ±(1.2%+3)
6.000V/60.00V/600.0V ±(0.8%+3)
600V ±(1.2%+3)
Resistance 600Ω ±(1.0%+3)
6kΩ/60kΩ/600kΩ/6MΩ ±(1.0%+2)
60MΩ ±(1.5%+3)
DC Current 600µA/6000µA/60mA/600mA ±(1.2%+2)
6A/15A ±(2.0%+3)
AC Current 600µA/6000µA/60mA/600mA ±(1.5%+3)
6A/15A ±(2.5%+5)
Capacitance 9.999nF ±(3.0%+10)
99.99nF/999.9nF/9.999µF ±(2.5%+5)
99.99µF ±(5.0%+10)
999.9µF/9.999mF/99.99mF ±(10.0%+20)
Frequency 9.999Hz/99.99Hz/999.9Hz/ ±(0.1%+5)
9.999kHz/99.99kHz/999.9kHz
9.999MHz
Temperature -20℃ ~ 150℃ ±(3℃+1)
-4℉ ~ 302℉ ±(5℉+2)
151℃ ~ 1000℃ ±(3.0%+2)
303℉ ~ 1832℉ ±(3.0%+3)

Supplied Accessories

 .
