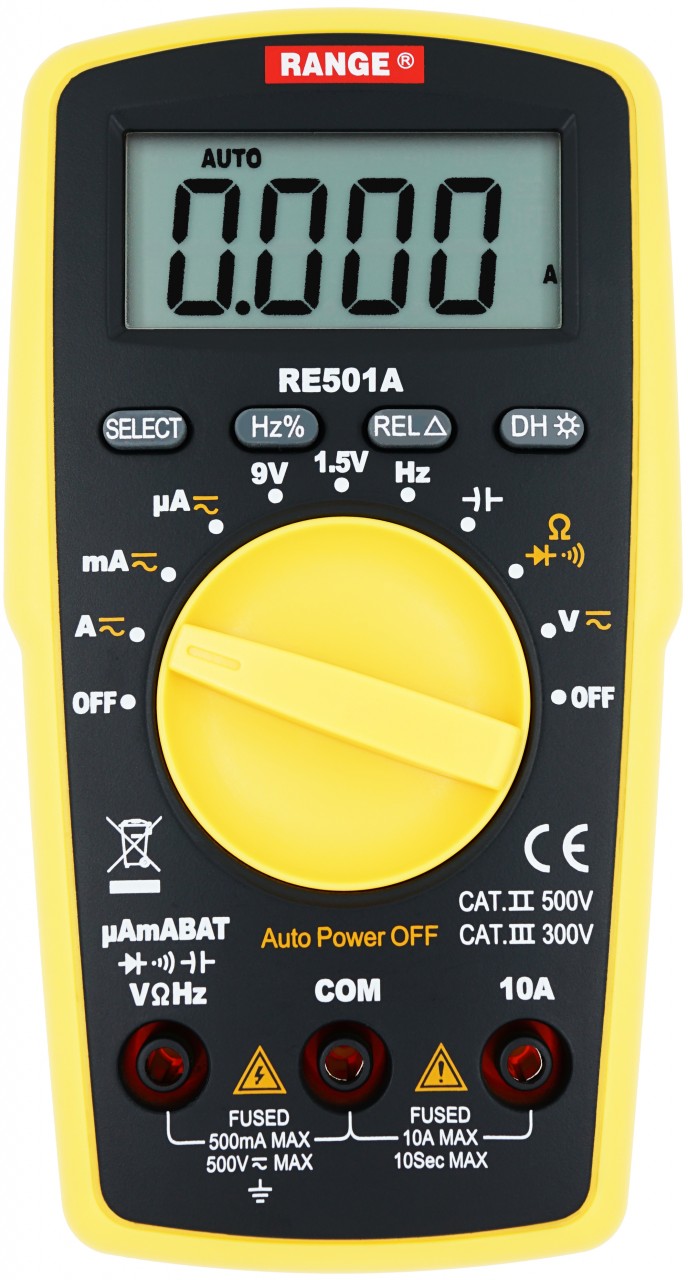

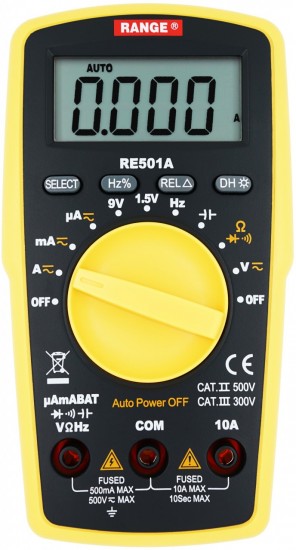

RE501A (Black)

Image 1
  • Image 1
Availability:
For general enquiries please contact us
Bookmark and Share

Description

ce.jpgemc-lvd.jpgrohs.bmpsgs-logo.png iec61010.jpg cat-ii-600.jpg cat-iii-300.jpg auto-power-off.jpgbacklighticon.jpg

Features

  • 4000 counts LCD Display
  • Auto Range & Manual Range
  • DC / AC Voltage
  • DC / AC Current
  • Resistance
  • Diode Test
  • Audible Continuity Test
  • Battery Test
  • Capacitance
  • Frequency
  • Duty Cycle
  • Data Hold
  • Relative Measurement
  • Back Light
  • Auto Power Off
  • Low Battery Indication
  • Overload Protection
  • Product Size: 138 x 74 x 30 mm
  • Product Net Weight: 120g

Specification

Specifications Range Best Accuracy
DC Voltage 400mV/4V/40V/400V ±(0.5%+2)
500V ±(0.8%+2)
AC Voltage 4V/40V/400V ±(0.8%+3)
500V ±(1.2%+3)
Resistance 400Ω ±(1.0%+2)
4KΩ/40KΩ/400KΩ/4MΩ ±(1.0%+3)
40MΩ ±(1.5%+3)
DC Current 400µA/4000µA/40mA/400mA ±(1.2%+2)
4A/10A ±(2.0%+3)
AC Current 400µA/4000µA/40mA/400mA ±(1.5%+3)
4A/10A ±(2.5%+5)
Battery Test 1.5V/9V ±(5.0%+5)
Capacitance 51.2nF ±(3.0%+10)
512nF/5.12µF/51.2µF ±(2.5%+5)
100µF ±(5.0%+10)
Frequency 5.12Hz/51.2Hz/512Hz/5.12KHz/ ±(0.1%+5)
51.2KHz/512KHz/5.12MHz

Supplied Accessories

　.
