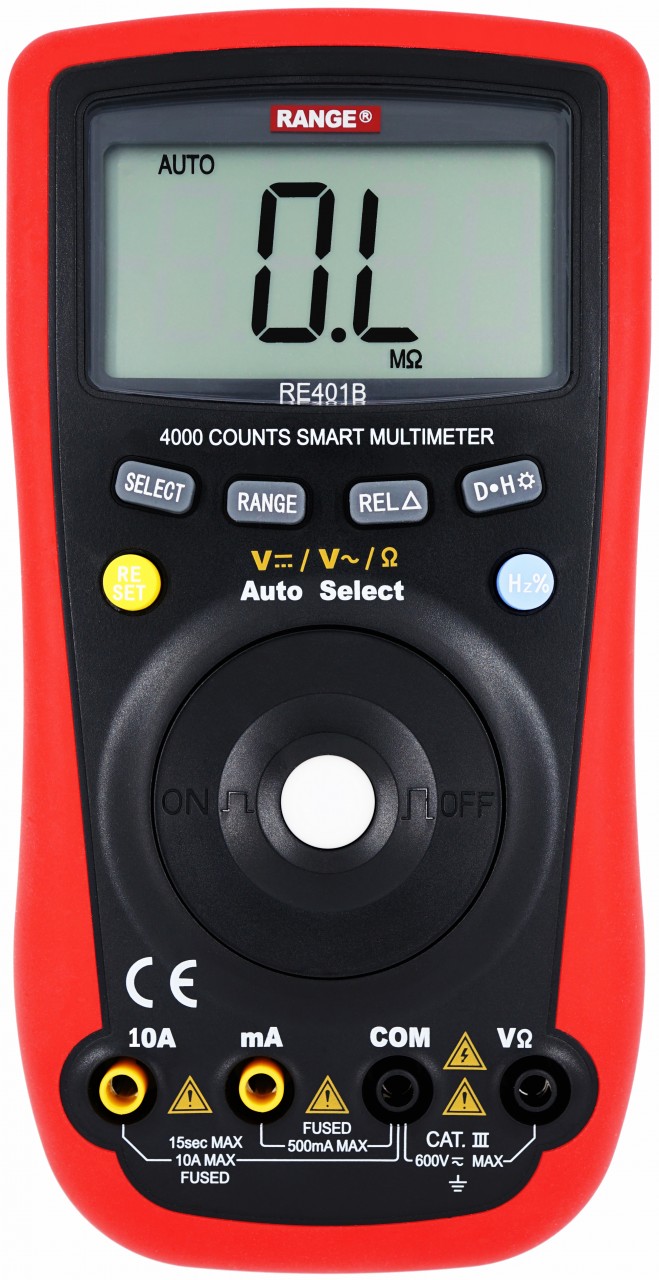

RE401B

Image 1
  • Image 1
  • Image 2
Availability:
For general enquiries please contact us
Bookmark and Share

Description

ce.jpgemc-lvd.jpgrohs.bmpiec61010.jpg cat-ii-1000.jpg cat-iii-600.pngbacklighticon.jpgauto-power-off.jpg

Features

  • 4000 counts LCD Display
  • SMART DIGITAL MULTIMETER
  • Auto-select and Auto-range
  • DC/AC Voltage
  • DC/AC Current
  • Resistance
  • Diode Test
  • Audible Continuity Test
  • Capacitance
  • Frequency
  • Duty Cycle
  • Data Hold
  • Relative Measurement
  • Back Light
  • Low Battery indication
  • Overload Protection
  • Product Size: 177 x 92 x 40 mm
  • Product Net Weight: 320g

Specification

Specifications Range Best Accuracy
DC Voltage 4V/40V/400V ±(0.5%+2)
600V ±(0.8%+2)
AC Voltage 4V/40V/400V ±(0.8%+3)
600V ±(1.2%+3)
Resistance 400Ω/4KΩ/40KΩ/400KΩ/4MΩ ±(1.0%+2)
40MΩ ±(1.5%+3)
DC Current 40mA/400mA ±(1.2%+2)
4A/10A ±(2.0%+3)
AC Current 40mA/400mA ±(1.5%+3)
4A/10A ±(2.5%+5)
Capacitance 40nF ±(3.0%+10)
400nF/4µF ±(2.5%+5)
40µF/100µF ±(5.0%+10)
Frequency

10Hz/100Hz/1000Hz/10KHz/

100KHz/1000KHz/10MHz

 ±(0.1%+5)
Duty cycle 0.1% ~ 99.9% ±(2.0%+2)

Supplied Accessories

　.
