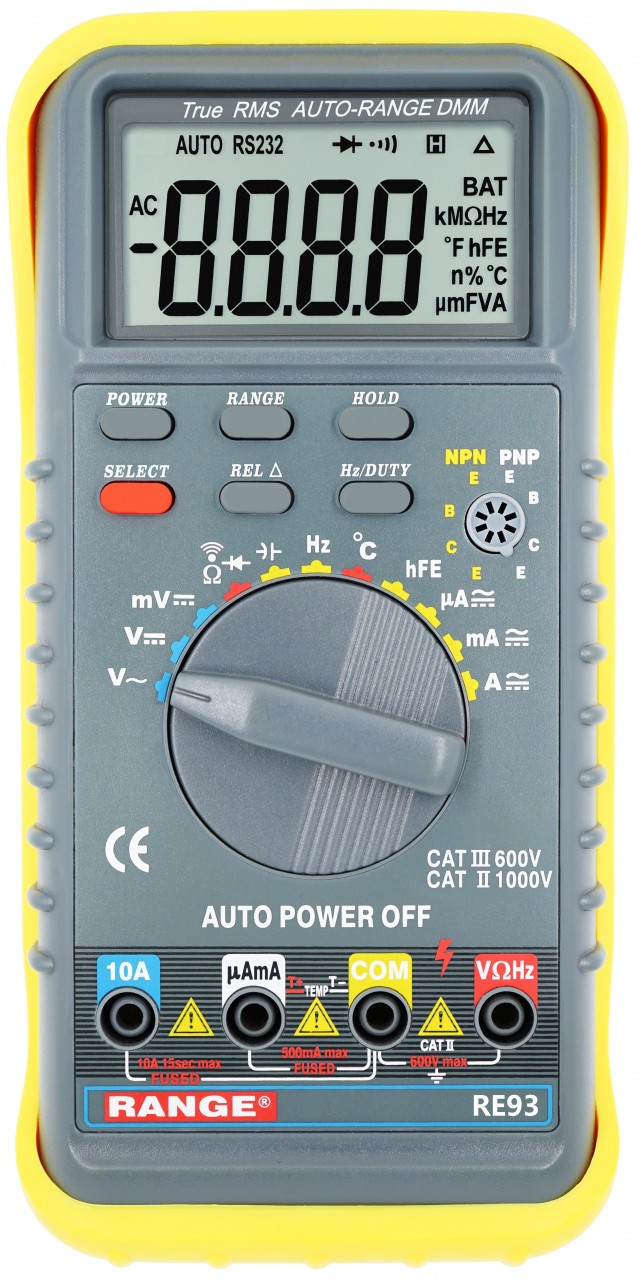

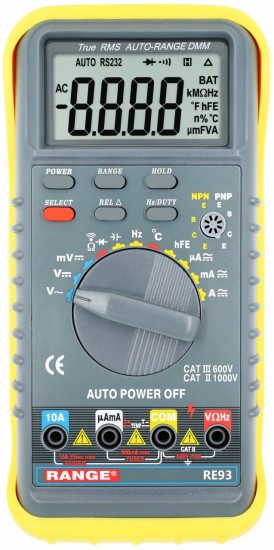

RE93

  • Image 1
Availability:
For general enquiries please contact us
Bookmark and Share


Description

ce.jpgemc-lvd.jpgrohs.bmpiec61010.jpg cat-ii-1000.jpg cat-iii-600.png auto-power-off.jpg

Features

  • 4000 counts LCD Display
  • Auto Range & Manual Range
  • DC/AC Voltage
  • DC/AC Current
  • Resistance
  • Diode Test
  • Audible Continuity Test
  • Transistor hFE Test
  • Capacitance
  • Frequency
  • Temperature (℉)
  • Duty Cycle
  • Data Hold
  • Relative Measurement
  • Auto Power Off
  • Low Battery Indication
  • Overload Protection
  • Produc Size: 189 x 91 x 32 mm
  • Product Net Weight: 310g

Specification

Specifications Range Best Accuracy
DC Voltage 400mV ±(0.8%+3)
4V/40V/400V ±(0.8%+1)
1000V ±(1.0%+3)
AC Voltage 4V/40V/400V ±(1.0%+5)
750V ±(1.2%+5)
Resistance 400Ω ±(1.2%+2)
4KΩ/40KΩ/400KΩ ±(1.0%+2)
4MΩ ±(1.2%+2)
40MΩ ±(1.5%+2)
DC Current 400μA/4000μA ±(1.0%+2)
40mA/400mA ±(1.2%+3)
4A/10A ±(1.5%+3)
AC Current 400μA/4000μA ±(1.5%+5)
40mA/400mA ±(2.0%+5)
4A/10A ±(1.5%+3)
Capacitance 4nF ±(5.0%+10)
40nF/400nF/4µF/40µF ±(3.5%+5)
100µF ±(4.0%+1)
Frequency 10Hz/100Hz/1KHz/10KHz/ ±(0.1%+5)
100KHz/1MHz/10MHz
Temperature -40℉ ~ 150℉ ±(3.0%+3)
150℉ ~ 800℉ ±(2.0%+15)

Supplied Accessories
