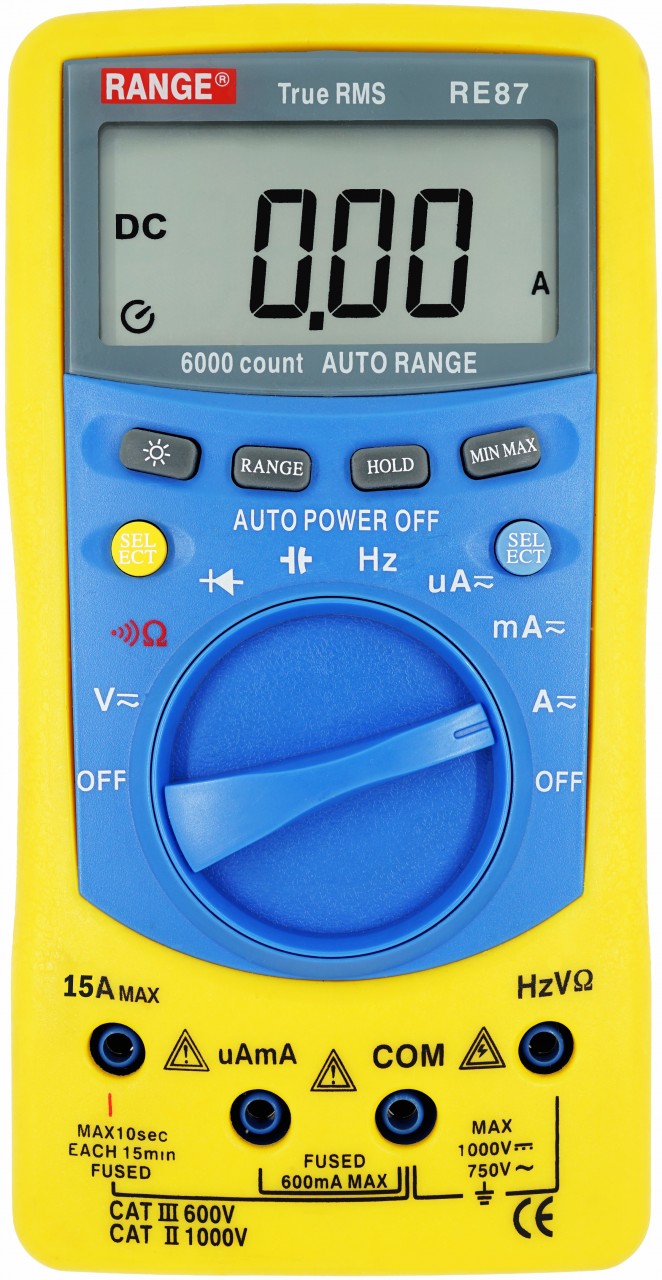

RE87

  • Image 1
Availability:
For general enquiries please contact us
Bookmark and Share


Description

ce.jpgemc-lvd.jpgrohs.bmpiec61010.jpg cat-ii-1000.jpg cat-iii-600.png trms.png backlighticon.jpgauto-power-off.jpg

Features

  • 6000 counts LCD Display
  • Auto Range & Manual Range
  • DC/AC Voltage
  • DC/AC Current
  • Resistance
  • Diode Test
  • Audible Continuity Test
  • Capacitance
  • Frequency
  • Data Hold
  • Max/Min Function
  • Back Light
  • True RMS
  • Auto Power Off
  • Low Battery Indication
  • Overload Protection
  • 15A
  • Product Size: 175 x 90 x 37 mm
  • Product Net Weight: 300g

Specification

Specifications Range Best Accuracy
DC Voltage 600mV ±(0.8%+3)
6V/60V/600V ±(0.8%+1)
1000V ±(1.0%+3)
AC Voltage 6V/60V/600V ±(1.0%+5)
750V ±(1.2%+5)
Resistance 600Ω ±(1.2%+3)
6KΩ/60KΩ/600KΩ ±(1.0%+2)
6MΩ ±(1.2%+2)
60MΩ ±(1.5%+2)
DC Current 600µA/6mA ±(1.2%+2)
60mA/600mA ±(1.2%+3)
6A/15A ±(1.5%+5)
AC Current 600µA/6mA ±(2.0%+3)
60mA/600mA ±(2.0%+5)
6A/15A ±(2.5%+5)
Capacitance 60nF ±(3.0%+10)
600nF/6µF/60µF/600µF ±(3.0%+5)
4MF ±(4.0%+5)
Frequency

60Hz/600Hz/6KHz/60KHz/

600KHz/6MHz/60MHz

±(0.1%+5)

Supplied Accessories
